Windows & optical candidatesFused quartz
Quartz Viewing Windows
Chamber viewing and optical-monitoring candidates; wavelength, sealing edge and optical requirements must be confirmed.
Request a feasibility review

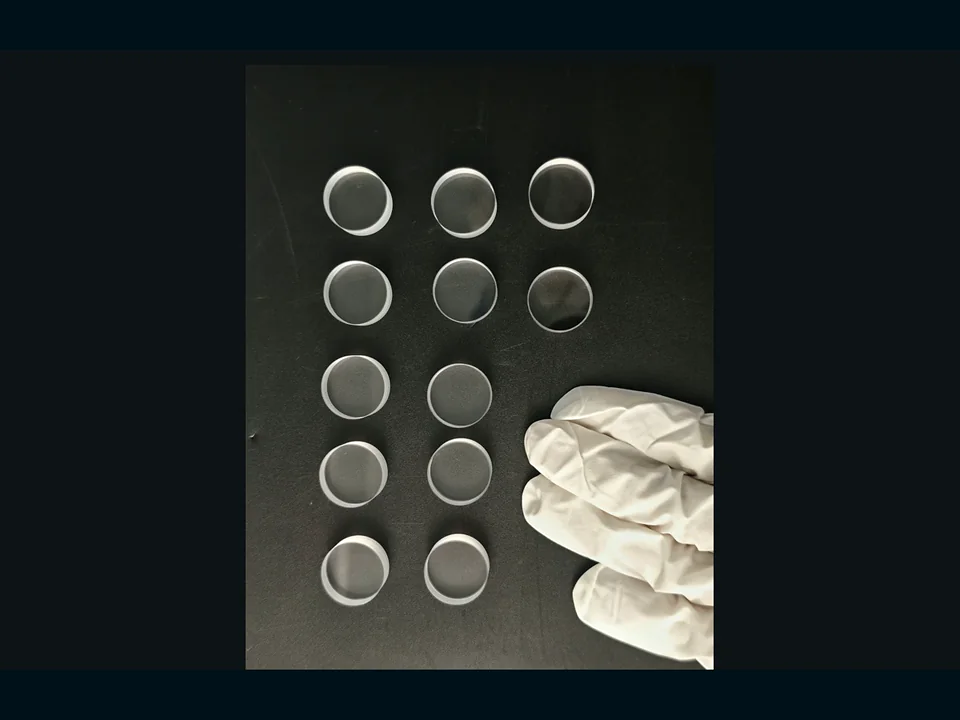

Representative family images. Final geometry and revision are confirmed against the customer drawing.
Material direction
Fused quartz
Candidate processes
Deposition · Dry etch & chamber · Epitaxy
Equipment areas
Process chamber
Size approach
Custom / drawing-led
What this family covers
- viewing window
- viewport
- optical window
- monitoring window
Define before quotation
- Working wavelength and clear aperture
- Flatness, parallelism and finish
- Seal geometry and chamber position
Engineering route
From identification to customer qualification.
- 01
Identify the part and equipment position
- 02
Review drawing, sample and process conditions
- 03
Agree critical dimensions and acceptance criteria
- 04
Build and qualify before repeat supply
Suitability boundary
This page identifies a candidate product family. It does not state compatibility with a specific tool, process recipe or OEM part number. Final suitability is confirmed against customer-controlled technical inputs.
Technical enquiry FAQ
What should I send first?
A controlled drawing is preferred. If no drawing is available, send the reference part number, clear photos and ask whether sample-based measurement is possible.
Can WONIK confirm compatibility from a photo?
No. A photo can help identify the candidate family, but material grade, dimensions and equipment compatibility require technical confirmation.
What makes a quotation faster?
Include equipment model and module, process, material or grade, quantity, critical tolerances, temperature, pressure or chemistry, cleaning, packaging and acceptance requirements.
